New Energy Wiring Harness for Control Power Supply and Home Energy Storage

New Energy Wiring Harness for Control Power Supply and Home Energy Storage

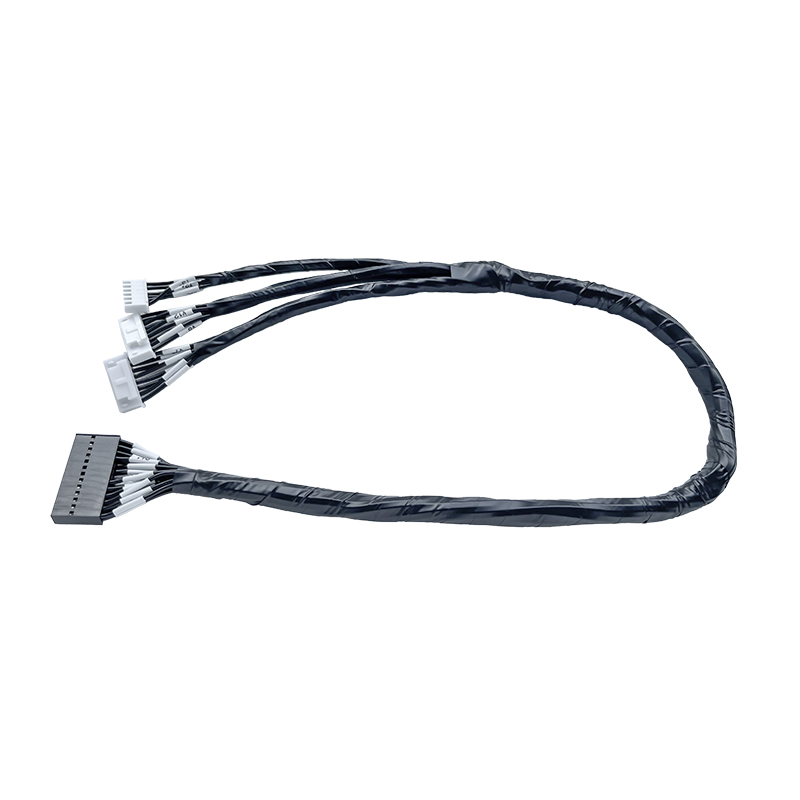

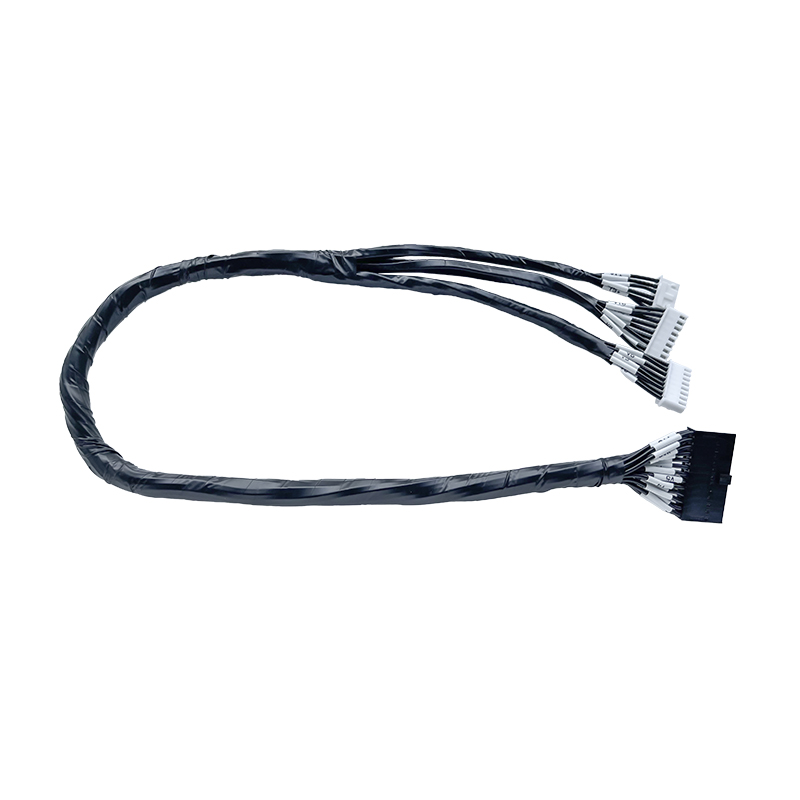

The Collection Wiring Harness uses 3239#22 black wire, with a standard length of 600 mm. One end is connected to A2547H-2×8P, while the other branches connect to XHB-6P + XHB-9P + XHB-8P connectors.

Each harness is wrapped with durable PVC insulation tape for enhanced protection against abrasion, heat, and environmental impact. Custom configurations and cable lengths are available to match your system specifications.

This wiring solution is especially suitable for new energy systems that require precision, signal stability, and high-current endurance in compact installations.


Specifications

Key Features:

• High Reliability: Stable signal and power transmission for high-load environments.
• Flexible Customization: Supports various connector combinations and wire lengths.
• Durable PVC Wrapping: Provides mechanical strength and protection against wear and moisture.
• Heat & Flame Resistance: 3239#22 wire rated for 105 °C ensures long-term performance.
• Plug-and-Play Design: Simplifies installation and reduces on-site wiring errors.
• Compatible with Smart Energy Systems: Ideal for EV charging, power control, and storage units.

Applications:

• Charging Piles: Power and communication interface for EV charging systems
• Control Power Supply Units: Ensures stable power output in industrial and residential control circuits
• Home Energy Storage Systems: Connects inverter, battery pack, and monitoring units in household energy storage setups.
• Solar Inverter Systems: Suitable for DC/AC signal transmission in renewable energy configurations.
• Battery Management Systems (BMS): Facilitates accurate data collection and control signal transfer.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
