200mm Black Wire Harness Assembly | Pre-Crimped Ferrule Terminals for Control Cabinets

200mm Black Wire Harness Assembly | Pre-Crimped Ferrule Terminals for Control Cabinets

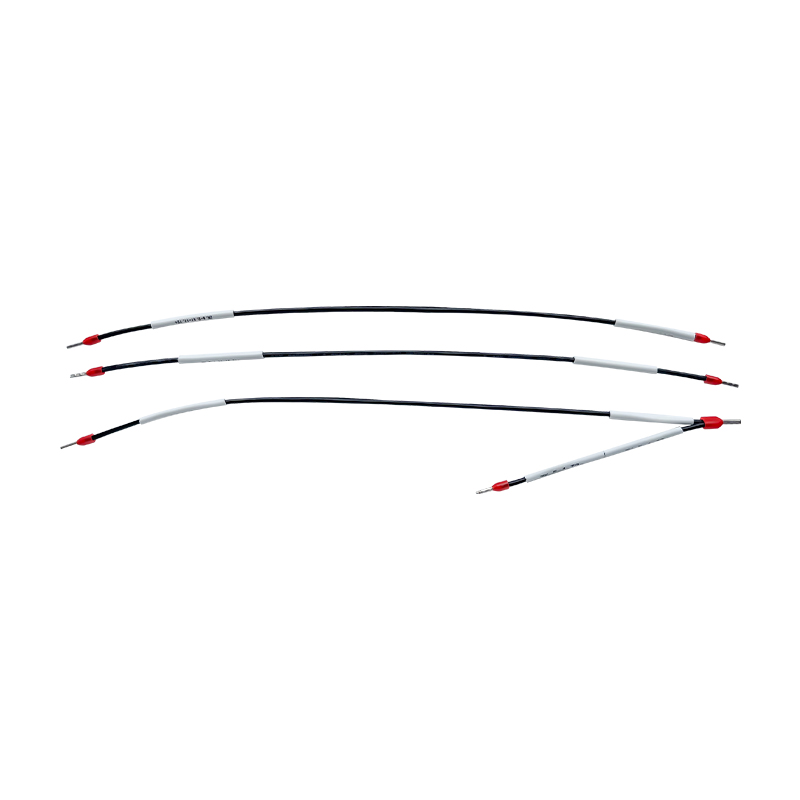

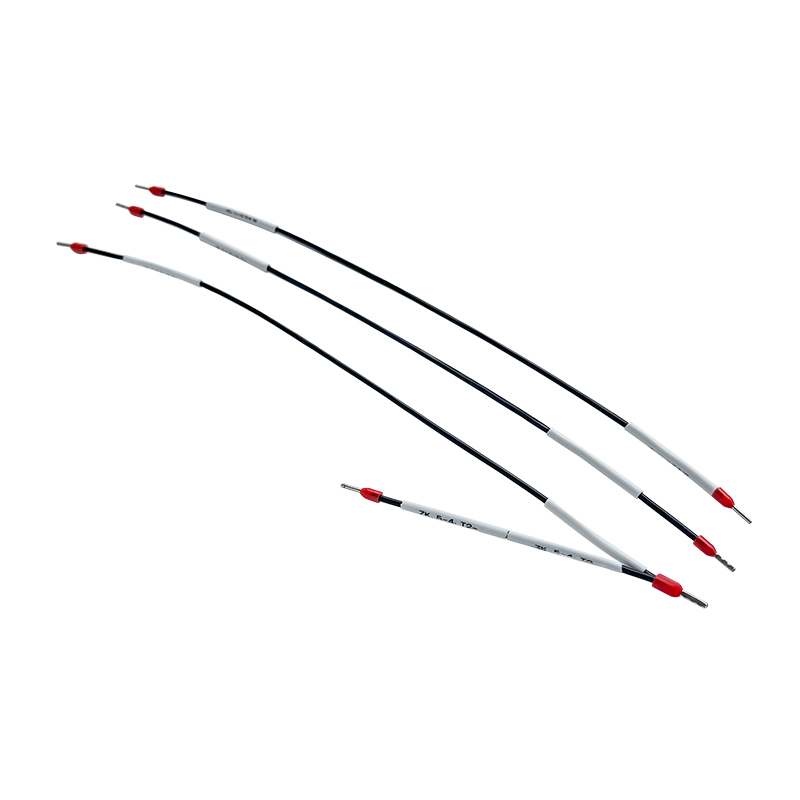

This dual-tubular terminal wire harness is specifically manufactured to streamline high-density wiring configurations. Utilizing standard UL1007 22AWG tinned conductors, the assembly guarantees stable signal and power transfer while minimizing DC resistance. The pre-crimped ferrule terminals at both ends prevent wire fraying and ensure a secure, flush fit within terminal blocks. Integrated with printed identification sleeves, this harness significantly reduces assembly time and maintenance errors in complex industrial power systems.


Specifications

Key Features:

• Dual Ferrule Terminal Design: Both ends are equipped with precision-crimped tubular terminals. This prevents the splitting of stranded wires, increases the contact surface area, and ensures a vibration-resistant connection inside compact terminal blocks.

• Optimized Electrical Efficiency: Constructed with high-purity tinned conductors. This precision manufacturing significantly lowers DC resistance, minimizing energy loss during transmission and boosting overall system efficiency.

• Stable Thermal Management: Scientific wire gauge selection (22AWG) paired with high-quality insulation allows the harness to maintain a strictly controlled temperature rise. It guarantees reliable performance without degradation, even under continuous operational loads.

• Rapid Circuit Identification: Features custom-printed protective tubing. This clear labeling system allows technicians to easily map and install connections, eliminating routing errors in dense control cabinet environments.

Applications:

• New Energy Equipment: Reliable internal connections for solar inverter components and energy storage monitoring systems.
• Power Control Cabinets: Organized, space-saving wiring for industrial distribution boxes and automated switchgear.
• Electronic Communication Devices: Stable power and signal routing for networking hardware, base stations, and telecom enclosures.
• EV Charging Stations: Durable, low-loss interconnects for internal charging modules and control units.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
